Inventor Nastran is a sturdy finite detail evaluation (FEA) tool incorporated with Autodesk software, offering complete solutions for engineering and simulation. It affords advanced capabilities for analyzing nonlinear dynamics, warmth transfer, and fatigue through static, buckling, and impact tests.
Autodesk – Inventor Nastran Features
- A wide range of simulations look at sorts: Nonlinear, dynamics, warmth transfer, fatigue, and more.
- Advanced fabric models: For plastic, rubber, smooth tissue, and more.
- Automated drop check: Intuitive gear for impact analysis setup.
- Autodesk CFD interoperability: Import records for accurate outcomes.
- Response spectrum analysis: Quick analysis for modes, damping, and response spectrum data.
- Automatic midplane meshes: Faster and excellent correct bending results for thin components.
- Frame Generator idealization: Solve for bending second, bend diagrams, and axial strain.
- Linear buckling: Analyze systems for catastrophic failure underneath positive loading situations.
- Static fatigue: Determine durability under repeated loading.
- Impact evaluation: Solve effect activities and drop trying out.
- Surface touch: Simulate and version elements with distinctive kinds of contact.
Inventor Nastran Documentation

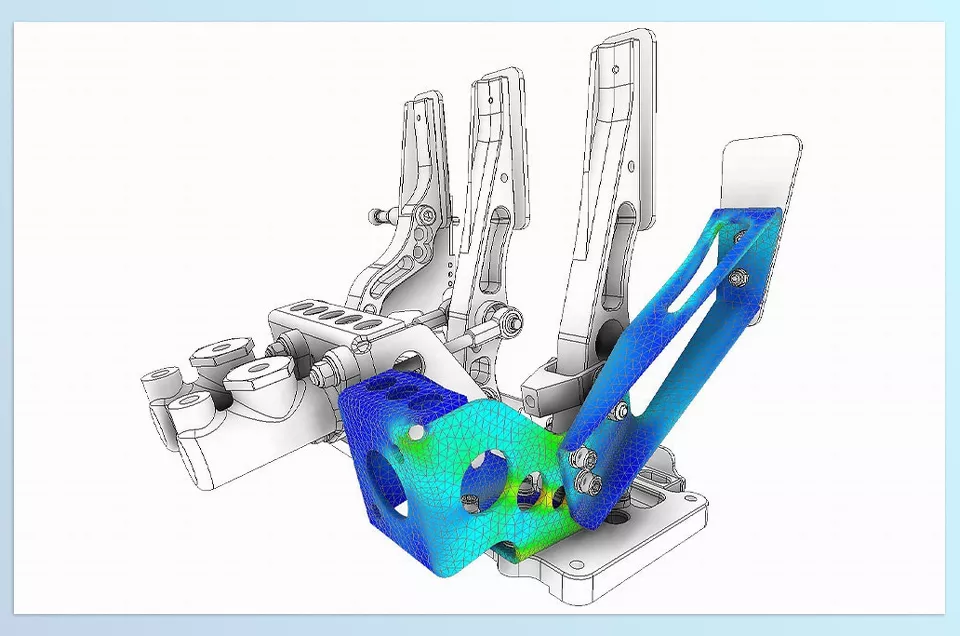

Image 1: Utilize specialized mesh elements and result types for sheet metal.

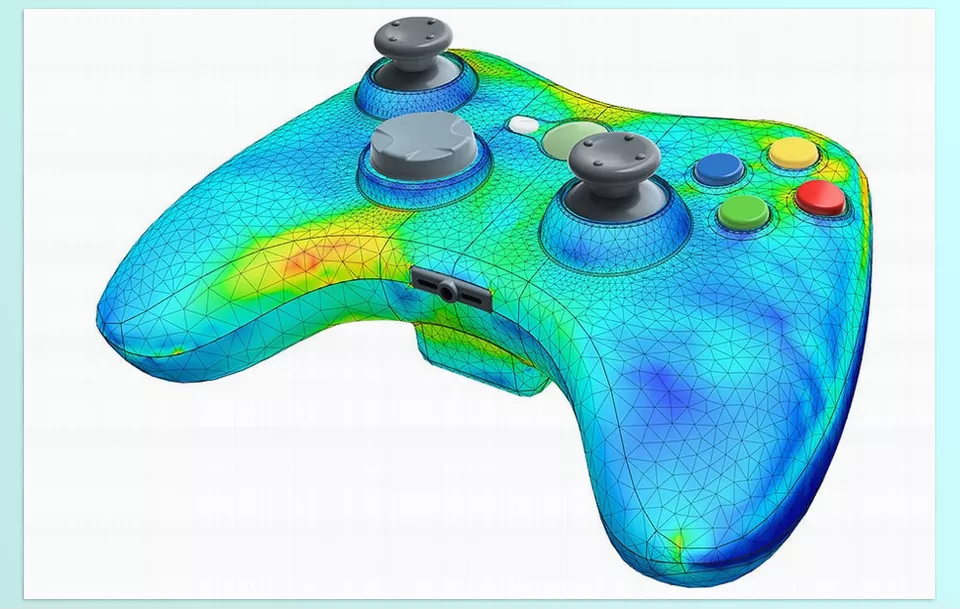

Image 2: Evaluate the maximum load conditions considering nonlinear buckling effects.
